How to Choose the Best Duct Heating System for Your Home

Choosing the best duct heating system for your house is dependent on understanding the specific requirements of your home such as your house’s size and layout, the local environment and energy sources and budget, as well as the equilibrium between upfront costs and long-term performance. It’s not a simple, universal choice The ideal heating system for an expansive Melbourne home is different from the one that is ideal for an ocean-front Sydney apartment or an very well-insulated Adelaide bungalow. This comprehensive guide helps you sort through the haze, enabling the homeowner to take an educated investment that provides years of comfortable, reliable and affordable warmth that is tailored specifically for you and your Australian home.

Understanding Ducted Heating: Your Whole-Home Warmth Solution

In the heart, the duct heating system offers central warmth by dispersing heated air via a system of ducts that are concealed within the ceiling or underfloor area. Central units (powered by electricity, gas or a heat pump with reverse cycle technology) creates warmth. A powerful fan propels the warm air into the ducts and out through small vents carefully situated in each space you want to warm. The thermostat functions as the central control station, keeping track of your temperature, and instructing the thermostat to turn either on or off, to ensure the desired level of comfort.

This method has substantial advantage over the use of spot heaters or multi split systems:

Whole-Home Comfort eliminates cold spots and guarantees consistent temperatures across your living spaces. Don’t be shivering in front of one heater!
Aesthetic Attractiveness: Minimal visual impact with just small, non-obtrusive vents, which preserve the interior style.
The convenience: Manage the temperature throughout your residence with a single thermostat. usually programmable or smart-enabled.
Possibility of Efficiency If properly sized, zoned and positioned the ducted system can be highly efficient at heating large areas, as opposed to the use of multiple heaters.
Quiet Operation Modern devices operate much more quietly than the older models, or several portable heaters.

It’s important to recognize the possible drawbacks

Higher Cost of Upfront: Installation, including the ductwork and unit, will require a higher initial expenditure than portable heaters or one split system.
Installation complexity: It requires professional installations which may require access to subfloors or roof spaces. Retrofitting could cause disruption.
The space requirement is Ample space to accommodate the unit as well as ductwork is essential.
Running Costs Could be significant when the system is too large and poorly zoned or if it is used inefficiently (though typically, it is less expensive per heated square compared to many alternatives).
Energy Source Dependence The running costs are linked to electricity or gas prices.

Duct Heating System

Navigating the Types of Ducted Heating Systems

A “best” system depends heavily on your specific circumstances. Here’s a list of most popular options in Australia:

Gas Ducted Heating:

What it does: Burns natural gas (or LPG) to warm air through the heat exchanger. The fan moves this hot air into the ducts.
Benefits Fast, powerful heating output generally less running cost over electric resistance heat; well suited to warmer environments (Melbourne, Adelaide, Canberra, Hobart); high-efficiency models are available (6-starplus).
Con: Requires a gas connection (installation or continuous supply) and generates combustion gases, which require an appropriate flueing system; requires annual safety inspections as well as environmental concerns regarding gas usage; initial cost could be expensive.
Ideal for: Homes in colder areas that have gas connections in which fast, powerful heating is an important factor and energy efficiency (vs. resistance to electricity) is the goal.

Reverse Cycle Air Conditioning (Ducted):

What it does: Uses a heat pump to draw the heat of the air outside (even in cold conditions) and bring it into the interior. The same system also provides cooling in the summer months.
Advantages Very energy-efficient (can deliver up to 3-5kW of energy per kilowatt of electricity used High COP) It provides all year round cooling and heating in one system, with no combustion gases, generally less running expenses than gas in a variety of scenarios particularly with increasing gas prices; less maintenance needs than gas.
Con: Upfront cost can be expensive; heating performance is less effective when it is extreme cold temperatures (though cold climate models work well throughout Australian winters) Efficiency is contingent on the temperature outside; it requires enough outdoor space.
Best For: Homes seeking year-round climate control; areas with milder winters or where gas is unavailable/expensive; prioritising energy efficiency and lower running costs; environmentally conscious choices. It is becoming more competitive, even in the colder regions.

Electric Ducted Heating:

What it does: Uses electric resistance elements (like the size of a toaster) to warm air that is which is then blown by the air ducts.
Benefits Less upfront costs for equipment than reverse cycle or gas easy technology and no gas connections are required No combustion gasses.
Pros: Very high running costs (1kW electricity equals 1kW heat in comparison to. 3- 5kW heat from the reverse cycle) The most expensive way to operate and is less eco-friendly in the event that grid electricity is carbon intensive.
Ideal for: Smaller homes or zones with little heating needs; rooms that require periodic heating; or areas where gas isn’t available or reverse-cycle installation isn’t possible. It is generally not recommended as a principal whole-home solution due operating costs.

Hybrid or Dual-Fuel Systems:

What it does: Combines technologies, usually a reverse cycle heat pump to handle moderate conditions, and a gas furnace to combat the coldest times or to boost the heating capacity quickly.
Advantages Enhances the efficiency of your system by utilizing the most efficient fuel source available that ensures strong heating at all temperatures, and also provides redundant heating.
Pros: Highest upfront cost and installation complexity; requires electricity and gas as well as a higher level of maintenance.
is ideal for: Homes in regions with a wide range of temperature variations or those that demand absolute heating performance irrespective of weather conditions; and future-proofing against the fluctuation in energy prices.

Key Factors Dictating Your Perfect System Choice

Your Home’s Characteristics:

Size and Layout This is crucial to consider when the proper sizing of your heated ducts. A professional installer performs a detailed heat load calculation, considering floor area, ceiling height, window size/type/orientation, insulation levels, and construction materials. Oversizing is energy-intensive and leads to short-cycle (frequent switching on and off) while undersizing can leave you cold. Don’t make assumptions – do the right number.
Insulation One of the most significant influence on heating efficiency and the required system size. An adequately insulated ceiling, walls and floors significantly reduce the loss of heat and results in less energy consumption and a lower cost to run the system. Check and improve insulation prior to making your decision about heating.
Existing Ductwork When replacing an old system, existing ducts may be reuseable (saving costs) however, they require evaluation for the size and condition, leaks and insulation. The ducts that leak are detrimental to efficiency.
Space Availability Are there enough accessible space available in the center unit (roof cavity garage, subfloor)? Are there clear pathways to duct runs?

Your Climate Zone:

The cold Southern Regions (VIC, TAS, ACT, Southern NSW/SA): Demand powerful heating. Gas ducted remains a favorite due to its fast, powerful heat, but reverse cycle with high efficiency is increasing in popularity. Think about reverse cycle that is specifically designed for cold climates. models.
Temperate Zones (Sydney, Perth, Adelaide, Brisbane): Moderate winters. The reverse cycle duplex is usually the best option, delivering efficient heating and crucial cooling. Gas is a viable option, but it is facing increasing competition in terms of cost and efficiency with reverse cycle.
Mild/Warm and Tropic Zones (Northern Queensland, QLD, NT, WA north): Heating needs are not significant and rarely. Reverse cycle ducted is a great choice for offering essential cooling and managing the occasional cold spell effectively. Electric or gas ducted heating is not often justified in this.

Energy Efficiency & Running Costs:

Ratings are Important: Gas heaters use stars ratings (more stars means more efficient, less cost of gas). Reverse cycle systems employ the Coefficient of Performance (COP) or Heating Seasonal Performance Factor (HSPF) Higher numbers equal more efficiency and less electricity costs for heating. Always check the efficiency ratings of different models.
Operating Costs Realities Calculate the estimated annual running costs based upon the local prices for energy (gas C/MJ, electricity c/kWh) and the efficiency of your system as well as your anticipated patterns of usage and your home’s size. The reverse cycle is generally the most affordable heating operating costs. Gas may be less expensive that reverse cycles in certain locations in the event that gas costs are low, but the gap is closing. Electric resistance is always costliest. Online calculators or installer quotes can provide estimates.
Maintenance Costs Consider annual servicing of gas-powered systems (mandatory to protect yourself) and bi-annual maintenance/filter change to reverse cycle. Systems that are well-maintained run less expensive as well and will last for longer.

Zoning: The Key to Comfort and Efficiency:

What’s Zoning? The division of your house into different zones (zones) that are individually heated (e.g., Living Zone, Bedroom Zone). Electronic dampers inside the ducts are opened and closed to allow air flow.
What is it that makes it important: Avoids wasting energy by heating empty rooms. It allows different temperatures to be set in different locations (e.g. more comfortable living spaces in the daytime, and cooler bedrooms at the night). Significantly lowers operating costs (potentially 20-30%). %+). Improves comfort significantly.
Application: Can range from basic 2-zone configurations to advanced multi-room control. It is expensive upfront, but pay quickly in terms of savings and comfort. is highly recommended for nearly all houses. Ask: “How many zones do I realistically need?”

Budget: upfront or. Lifetime Cost:

Initial Costs: Include the device as well as ductwork, vents, thermostats, zoning controls (if there is any) as well as professional installation. The reverse and the gas cycle can be both top alternatives. Electric ducts are less expensive upfront. Hybrids are the least costly.
Lifetime Costs Include upfront costs plus running expenses (energy and maintenance) throughout the anticipated lifespan (15-20 to 20 years). An expensive, but effective reverse cycle device usually will have a lower cost of ownership compared to a less expensive gas system, which is less efficient in particular, because the prices of electricity from renewable sources could stabilize as gasoline prices vary. Always consider this.

Duct Heating System

The Installation & Maintenance Imperative

Selecting the right installer: This is critical. You should look for:

Licenses: Must hold current Refrigeration and Air Conditioning (RAC) license, Gas Work licence (for gas) and electrical licence.
Experience & Reputation: Specialisation in ducted systems, positive reviews, references.
Specific Quoting: It should include an estimate of the heat load particular model information such as ductwork plans along with zoning options and a detailed description of the costs. Be wary of quotes that are vague.
manufacturer accreditation: Make sure they’re educated on the particular brand and are able to honor warranties.
Garanty: Understand coverage for parts, labor and even the work of installation itself.

The Installation Process:

Timeline Most often, it takes 1-3 days in a typical home or complex job or retrofits.
Steps: Assessment of the site, placement of the unit, installation of ductwork Vent cutting, electrical/gas connection, wiring for control handover and commissioning.
Resiliency: Expect noise, dust and people using roof or floor areas. The best installers keep the mess to a minimum and thoroughly clean up.

Essential Maintenance:

Gas Systems An annual service that must be performed by a registered gas fitter. Verifies the burner, heat exchanger (for cracks that are crucial to safety) the flue and safety equipment and cleans all components. Safety and efficiency are not negotiable.
Reverse Cycle Systems Expert service suggested every 2 to 3 years. It includes checking refrigerant and electrical components cleaning coils, as well as testing the performance.
Filter Cleaning/Replacement: Crucial for both types! It is recommended to check it every month at times of peak usage Clean/replace filters every three months. Filter obstructions drastically limit efficiency and airflow. They also could cause damage to the system. Some systems feature washable filters.
DIY checks: Clear the air vents of drapes or furniture, pay attention to unusual sounds, and ensure that the outdoor equipment (reverse cycles) are free of clutter. Make sure to address issues quickly.

Addressing Common Concerns & Myths

“Is ducted heating cheaper to run than split systems? “ In order to heat the whole home the right size as well as zoned-ducted unit will generally be more efficient and cost-effective to operate than running several split systems at once. If you just heating a few rooms the majority of the time and you only have a few rooms, a split system for the rooms could be less expensive. Zoning makes ducted highly competitive.
“Does ducted heating spread dust and worsen allergies? “ Modern systems that have clean filters of high-quality (standard or HEPA if you choose to add it) actually enhance the quality of indoor air by continuously removing airborne particles such as pollen and dust. The most important factor is regular maintenance of your filters! Check that your system is equipped with adequate filtration, and replace filters when needed.
“Gas is always cheaper to run than reverse cycle. “ It has been historically was the case, but the reality is changing. Gas prices are rising and the remarkable effectiveness (COP) of the latest reverse cycle heat pumps mean that the running costs for reverse cycle are usually lower, particularly for heating. Always make comparisons based on the current local rates and the system’s efficiency.
“Ducted heating adds significant value to a home? “ Absolutely, particularly in warmer climates. It’s a sought-after option for buyers, indicating the comfort of a home, its convenience and perceived quality. Realtors often highlight it as a key selling feature.

Financial Considerations & Incentives

Understanding Costs:

Small House (e.g. 2 bed unit): $5,000 – $8,000+ (Reverse Cycle or Gas)
Medium-Home (e.g. 3-4 bed): $8,000 – $15,000+ (Reverse Cycle or Gas)
Large House (e.g. 4-bedand): $15,000 – $25,000+ (Reverse Cycle or Gas)
Factors: System type, brand, capacity, zoning complexity, ductwork difficulty, accessibility, location. Get detailed quotes.

Government Rebates & Incentives (Check Current Programs! ):

Federal Sometimes, they offer discounts for upgrades that are energy efficient (e.g. or replacing the old heating system).
State-Based: Vary significantly (e.g., Victoria’s Home Heating and Cooling Upgrades program, NSW Energy Savings Scheme – often discounts applied by retailers/installers). Most often, they target households with low incomes pensioners, elderly, or regions.
Local Council: Sometimes offer assistance or support.
Energy Retailer Schemes discounts under the state’s energy efficiency programs (VEEC, ESS etc.) are able to offer significant discounts at the point of sale for efficient systems. Importantly, the programs are constantly changing. Visit for the latest information on government’s official .gov.au sites (like energy.vic.gov.au as well as energy.nsw.gov.au) or talk to installers on current rebates during the time of purchasing.

Comparing Brands & Asking the Right Questions

Leading Brands (Examples): Brivis (Gas specialist, strong local presence), Rinnai (Gas), Daikin (Premium Reverse Cycle), Mitsubishi Electric (Premium Reverse Cycle), Fujitsu (Reverse Cycle), ActronAir (Aus Reverse Cycle/Gas), Panasonic (Reverse Cycle), Temperzone (Reverse Cycle/Gas), Braemar (Gas), Vulcan (Gas).

Key Considerations When Comparing:

Efficiency ratings:“Stars (Gas) and COPS/HSPF (Reverse Cycle) Higher is more efficient.
warranty: Length and coverage (parts and compressors, labor). 5+ years for compressor is standard for the most expensive reverse cycle.
Specifications: Zoning compatibility, smart controls (Wi-Fi) Noise level (dB rating) and filtration options. outdoor unit resistance to corrosion (coastal).
Local support: There are technicians available and spares within your region.
Goodwill: Reliability track record and customer service.

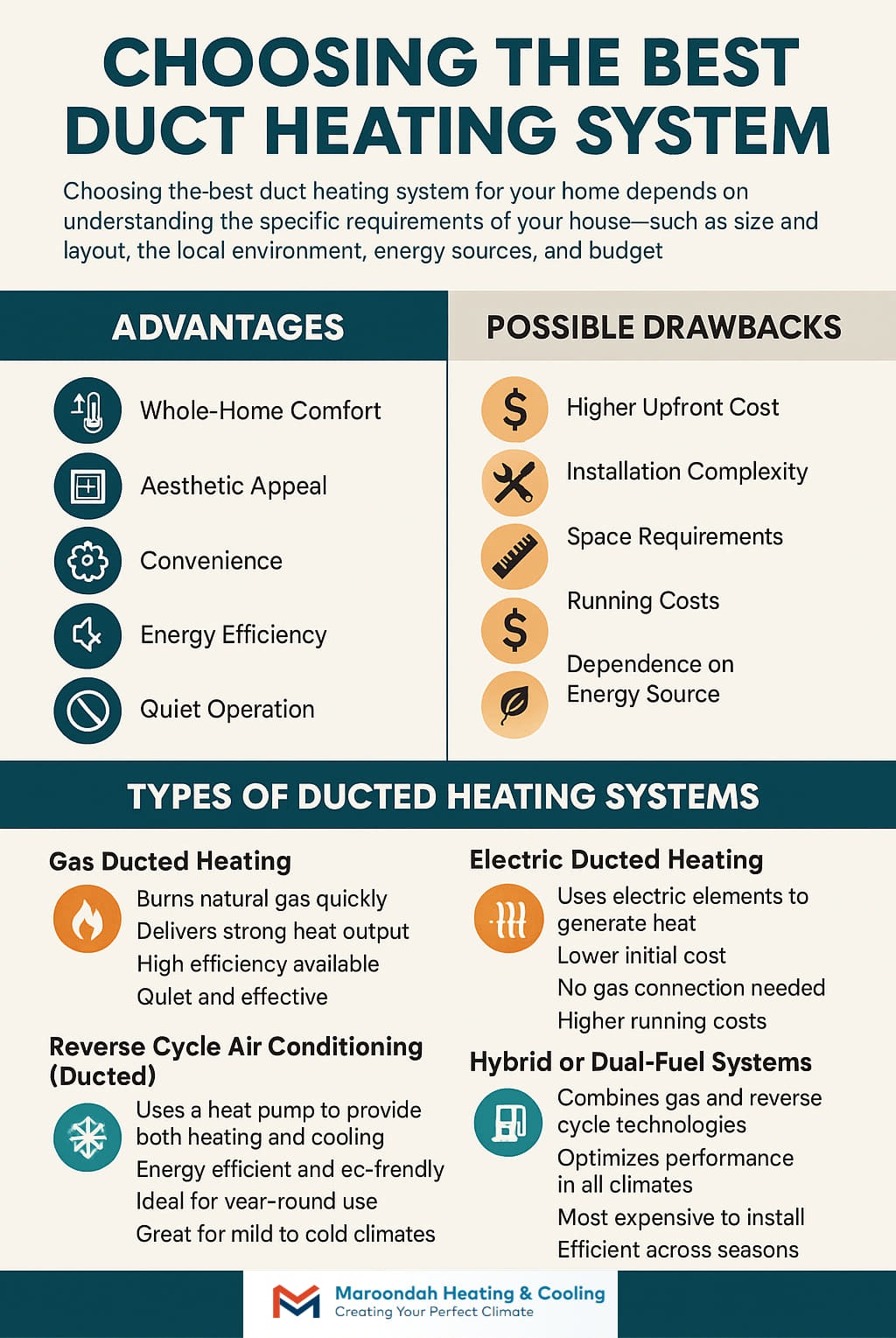

Ducted Heating System Infographic

Essential Questions for Your Installer/Supplier:

What specific calculation of the heat load did you do for my house?
What capacity/size system do you recommend and why?
What are the most specific model and make choices that meet my requirements and budget?
What is the total installed price, including the entire installation, including components such as ductwork, zoning (if required) and labor? Are there any GST included?
What kind of warranties are available (manufacturer equipment and labor for installation)?
Are you a licensed professional for RAC and Gas (if relevant) and electrical work? Can I see your licences?
Are you certified by your system’s manufacturer? you’re proposing?
Do you have a complete written estimate and contract?
Is there a projected timeframe for the installation?
What kind of maintenance is needed What is the estimated cost?
Could you provide a description of the options for zoning and their benefits/costs?
What is the approximate annual operating costs of the proposed system that I am considering for my home?
Are there any government rebates or discounts from the energy scheme in force?

Conclusion: Your Path to Perfect Home Heating

Choosing the best duct heating system for your Australian home is a significant decision, but with the information in this article, you’ll be able to be able to choose the best option. Be aware that the best option is one that balances:

The Home You Call Itself: Size, layout insulation, size, and the existing infrastructure.
Your Climate Dictates the demand for heating and the most suitable types of systems.
The Budget Be aware of both the upfront cost and running expenses for the long term.
The Comfort You Need Warmth throughout the home as well as zoning flexibility and control.
Efficiency and Environmental: Prioritising systems with high energy ratings to help with less energy bills and a lower environmental impact.

Heating with gas ducted remains a solid choice to provide fast, efficient heating in colder areas particularly when using gas. Reverse cycle ducted conditioning is a versatile high-efficiency solution for the majority of Australian homes, providing both cooling and heating with an increasing efficiency even in the coldest regions. Electric ducted is an uncommon option mostly for small areas or for supplemental heat. Hybrid systems are extremely efficient but with a price tag.

Most importantly, professional sizing, top-quality installation, effective Zoning, and regular maintenance are the most important elements to maximizing comfort, efficiency, longevity, and safety regardless of the type of system you pick. Don’t skimp on the heat load calculation, or look for the lowest cost without careful consideration.

If you take the time to evaluate your individual needs against the elements outlined here, asking the correct questions and working with trusted experts, you can invest in a ducted heating system that can transform your home into a sanctuary of warm, consistent warmth for the winters to be. It pays off over time, providing affordable, reliable comfort that is that is perfectly suited to the Australian lifestyle. Begin by obtaining detailed estimates, expert assessments and quotes specifically tailored to your house the ideal heating solution is just around the corner.
